SUPER GRILL LIGHTS



SERIES: 212, 412, 512, 712





    212                              412                          512                      712







ORDERING INFORMATION:





             MODEL # 212-ADL            Driving pattern. Steel painted yellow design using two Par 46 (5 1/2")

                                                            sealed beam lamps. Six inch diameter barrel.

                                                            Supplied with 2 sealed beam driving lamps.



             MODEL # 212-ATL             Same as above but with 2 tractor lamps (tractor pattern)



             MODEL # 412-ADL            Has two 35,000 CP driving lamps



             MODEL # 412-ATL             Same as above but with two tractor light pattern lamps.

                                                            Aluminum 4 1/2" Par 36 barrel light with two sealed beam lamps.

                                                            High intensity 35,000 CP lamps for most effective warning.

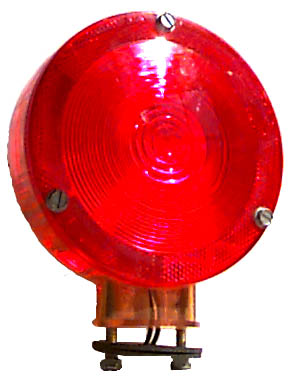

             MODEL # 512-CH               Chrome Head



             MODEL # 512-GR              Yellow or Grey Head



             MODEL # 512-GR-1157     Yellow or Grey Head with double contact 1157 tail light bulb.

                                                            Double or single direction. All LexanŽ 5" head.

                                                            Available with single contact or double contact lamps.

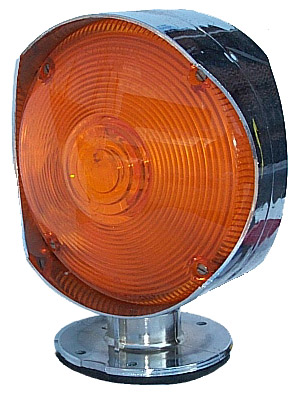

             MODEL # 712-CH               Double direction. Chrome Head



             MODEL # 712-AM              Double direction - Amber.  Double or single direction 7" warning light.

                                                            Standard unit has 50 watt lamp.  The head has a built-in 2" sun hood

                                                            due to head design.  Add Suffix SD for Single Direction





NOTE:   Always specify Color of Lens when ordering  RED, BLUE, AMBER, GREEN

               Voltages are 12VDC unless specified differently





SUFFIXES:     C - Chrome        A - Angle Mount       R - Recessed Mount       GR - Grey



TM - Truck Mount        BLK - Black        H60 - 60 Watt Halogen



    50W - 50 Watt Standard       18W - 18

  W

Julian A McDermott Corporation

(800) 842-5708
