MULTI-LEVEL ARROWBOARDS

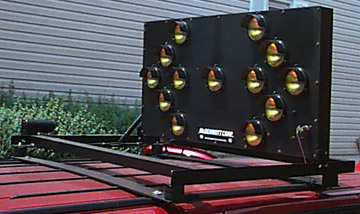

These Multi-Level Arrowboards ensure workers safety by allowing the operator to raise

the arrowboard and illuminate it from the safety of the vehicle cab.  In its down position,

it hides the unit away from costly overpasses, trees, or other low clearance obstacles.

Available with new super efficient 5 watt sealed beam lamps, the Multi-Level

Arrowboards can be left on all day without leaving the vehicles engine running  --

which is a key cost consideration when compared to standard 18 watt arrow board lamps.







LWAB-ML                                                   AB-2X4-ML

Clearance = 9" Down                                  Clearance = 7" Down

29" Up                                                          32" Up





Four Function (Left, Right, & Both Arrow, Travel Position)

Heavy Duty Aluminum Channels

Extremely Low Drain

Heavy Duty Weatherproof Motor Assembly

Choice of either 5 watt halogen sealed beam lamps or L.E.D. Lamps

Lamp Life on L.E.D.'s = 40,000 hours

Lamp Life on 5 watt halogen lamps = 4000 hours (flashing)



ORDERING INFORMATION:



          MODEL #  LWAB-ML-H5W                      Lite-Weight Multi-Level Arrowboard with 5 Watt Sealed

                                                                                 Beam Lamps



          MODEL #  LWAB-ML-LED                      Lite-Weight Multi-Level Arrowboard with 5 Watt Sealed

                                                                                 Beam Lamps



          MODEL #  AB-2X4-ML-SINGLE              Single Direction 2 x 4 Multi-Level Arrowboard with 5 Watt

                                                                                 Sealed Beam Lamps



          MODEL #  AB-2X4-ML-DOUBLE            Double Direction 2 x 4 Multi-Level Arrowboard with 5 Watt

                                                                                 Sealed Beam Lamps



          MODEL #  AB-2X4-ML-SINGLE-LED     Single Direction 2 x 4 Multi-Level Arrowboard with L.E.D's



          MODEL #  AB-2X4-ML-DOUBLE-LED   Double Direction 2 x 4 Multi-Level Arrowboard with L.E.D's
