TUGBOAT LIGHTS

Stop Replacing Lamps and ELIMINATE Labor and Cost of

Old Type Incandescent Lamps.

NEW L.E.D. CERTIFIED TUGBOAT NAVIGATION LIGHTS

CERTIFIED TO COLREGS as per UL1104

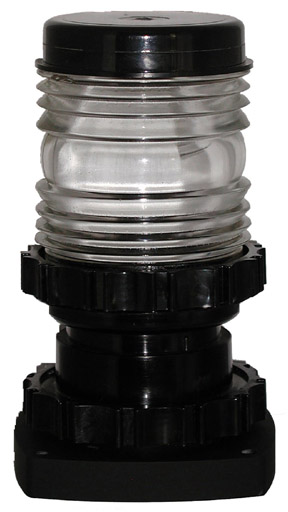

MAST HEAD LIGHTS

SERIES:  TB-5 / TB-6

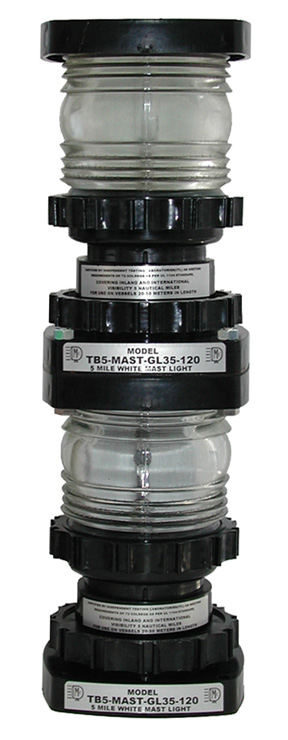

Single Head                                                 Double Head

                                                                                                                                                    (Add Suffix -DH)

TB5 - For Vessels from 20 Meters to 50 Meters Long

TB6 - For Vessels Greater Then 50 Meters Long

      Lamp Life up to 30,000 hours     Vibration Proof      Weight = 5 lbs.    Height = 10"

ALL AROUND 360º TUGBOAT LIGHTS

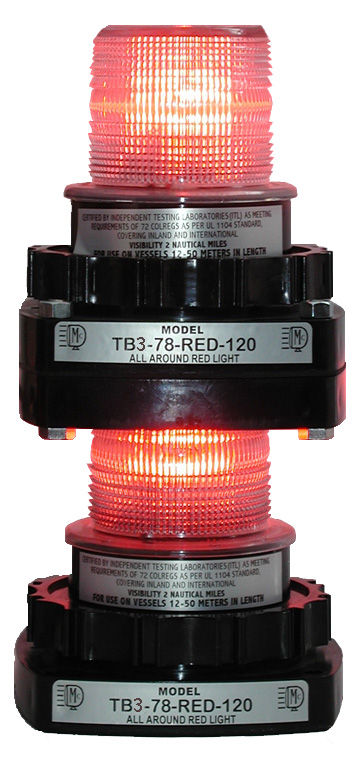

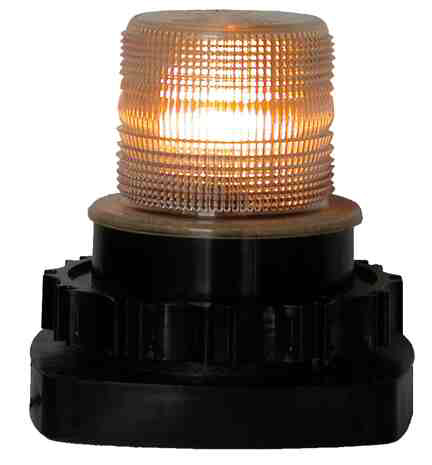

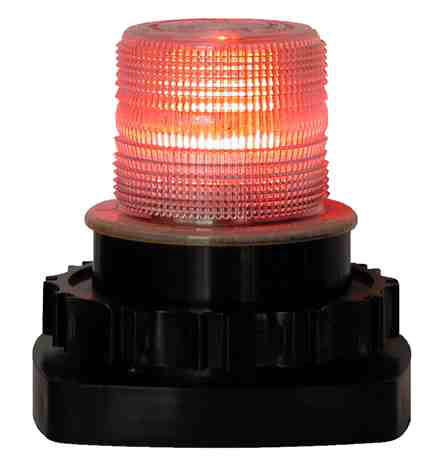

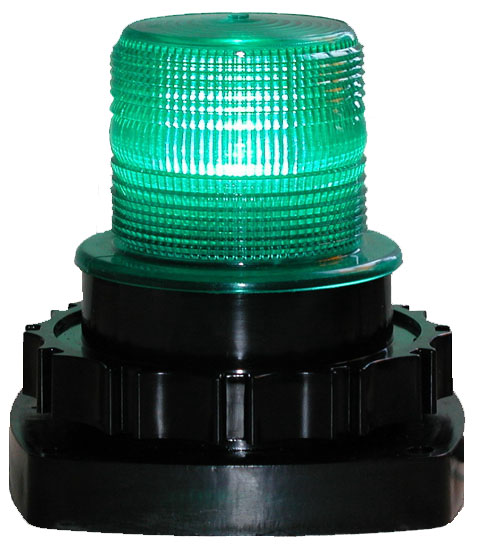

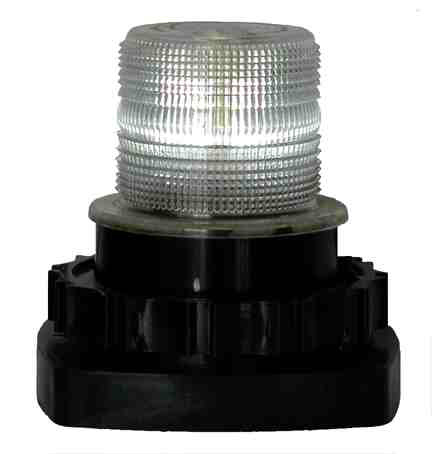

TB-2-78-YELLOW       TB-2-78-GREEN         T B-2-78-RED             TB-2-78-WHITE        Double Head

                                                                                                                                                       (Add Suffix -DH)

Certified to 72 COLREGS for Inland/International

For Vessels from 20 to 50 meters in length

Meets UL1104 requirements for a range of 2 miles

Visibility 2 miles

1 Year Warranty / 2 Year Guarantee

SCREENED TUGBOAT LIGHTS

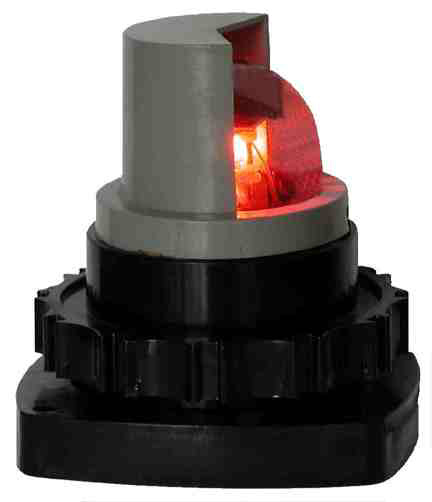

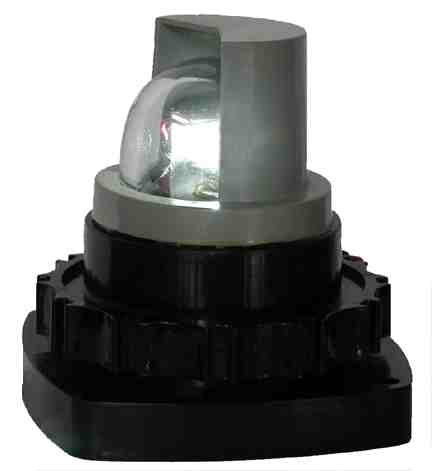

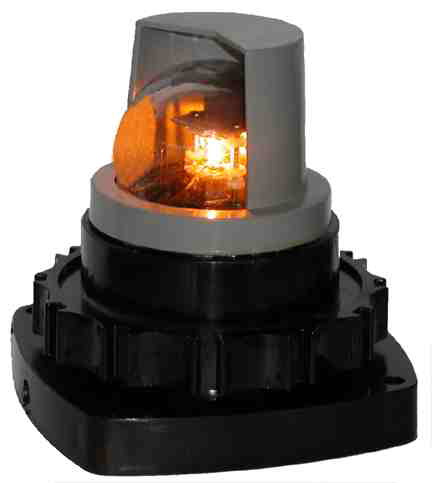

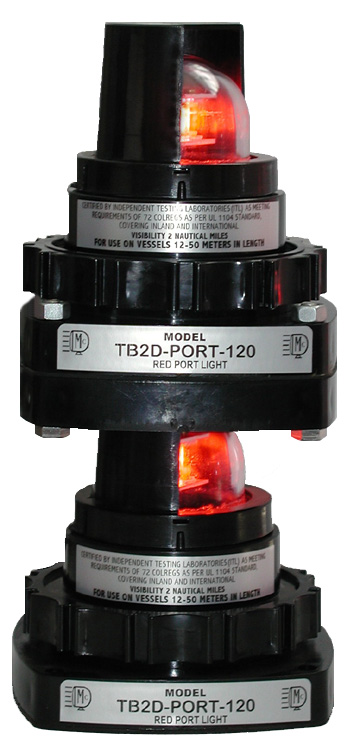

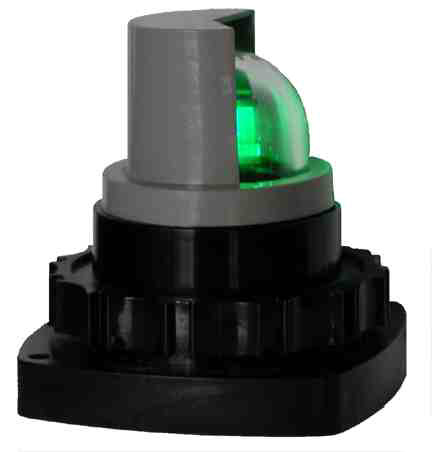

 TB2-266-TOW             TB2D-STAR                TB2D-PORT            TB2D-STERN         Double Head

                                                                                                                                                  (Add Suffix -DH)

ORDERING INFORMATION:

                                             SERIES                 TYPES                VOLTAGES

         MODEL #                  TB2D                     PORT                     12 DC                Add Suffix -P for option of

                                                                            STAR                      24 DC                  Boat with Alarm Panels

                                                                            STERN                   32 DC

                                             TB2-266                TOW                       120 VAC            Add Suffix -30FT for option

                                                                                                                                         of 30 Foot Cable instead

                                             TB2-78                  YELLOW                12 DC                         of 2 Foot Cable

                                                                            GREEN                  24 DC

                                                                            RED                        32 DC                       Add Suffix -DH for

                                                                            WHITE                  120 VAC          Double Head on Lights Above

                                                TB5                     MAST-GL35         12 DC

                                                                                                            24 DC

                                                                                                            32 DC

                                                                                                            120 VAC

                                                                                                            220 VAC

                                                 TB6                    MAST-GL35         12DC

                                                                                                            24 DC

                                                                                                            32 DC

                                                                                                            120 VAC

                                                                                                            220 VAC

JULIAN A. McDERMOTT CORP.

(800) 842-5708
