BUOYS & BUOYS W/LIGHTS

APPLICATION FOR BUOYS VIDEO

MEETS ASTM D4976 GROUP 2, CLASS 2, GRADE 3

** Lights are sold separately **

                     BUOY-B24                                        BUOY-B24-SRC                       BUOY-B24-SRC-18IN

Dimensions:  24 x 10           Weight:  20 lbs.         Material: Medium Density Polyethylene

Center Hole is 3 1/2", Has 2 hubs on bottom for tying a rope to a pipe line

Light must use a  23" or  31" tube where it is required to be 2 feet out of the water

On General lighted marker buoys  light must use a 15" tube

ORDERING INFORMATION:

       MODEL #  BUOY-B24-SRC

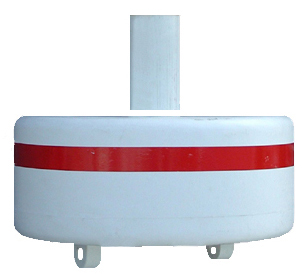

                    Buoy  with single reflector striping

       MODEL # BUOY-B24-SRC-18IN

                    Buoy  with single reflector striping and 18" collar

       MODEL # BUOY-24

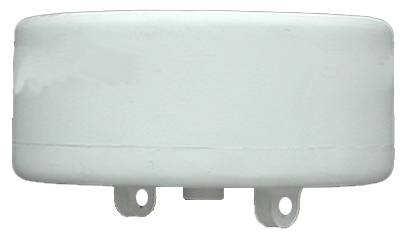

                    Buoy only

SUFFIXES:

     SRC - Single Reflector Striping          LOOP - Stainless Steel Loop for anchoring

     10IN - 10" Collar          18IN - 18" Collar      F - Foam Filled       C - Extension Collar

** Lights are sold separately **
