FLASHERS

      BTG                               NTG                             #550                          #552

Highly reliable alternating vehicle flashers for operating warning lights.

The BTG Series has replaceable Bosch Relays which are plug-in modules.

All units have hermetically sealed timing circuits and are flange mounted

ORDERING INFORMATION:

         MODEL #  BTG                     Standard alternating in flange box

         MODEL #  BTGHFO+           This is a full option headlight flasher  with the following options making it

                                                           usable in all states.

                                                          OVERRIDE HIGH  -  This locks both high beams on  whenever the high

                                                                                                 beam switch on the vehicle is turned on.

                                                          OVERRIDE LOW  -    This does not allow the flasher to work when the low

                                                                                                 beams are on.

                                                          LOW POWER SWITCHING  - Allows unit to be turned on  with low

                                                                                                               power switching.  All of the above features

                                                                                                               can be used to meet  particular state

                                                                                                               regulations.

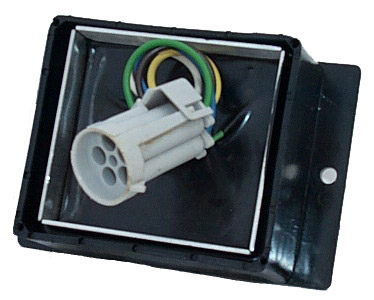

          MODEL #  NTG-FET           This heavy duty flasher is housed in a black polycarbonate flanged

                                                           mounted box.  It has a short circuit shutdown with a packard waterproof

                                                           plug.  Available in solid state versions.

          MODEL # 550                       Three terminal heavy duty flasher.

          MODEL # 552                       Two terminal turn signal flasher - thermal type.

      W

Julian A McDermott Corporation

(800) 842-5708
