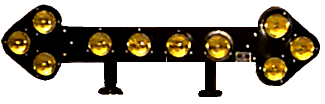

Lite-Weight Arrow Boards
MODEL: LWAB-10
Permanent Mount with Standard Bulbs.
MODEL: LWAB-10-H5W
Permanent Mount with Halogen Bulbs.
MODEL: LWAB-10-MAG
Magnetic Mount with Standard Bulbs. Quick installation.
MODEL: LWAB-10-MAG-H5W
Magnetic Mount with Halogen Bulbs
Con
Heavy Duty 12 Gauge Stamped Aluminum
Finish: Black Enamel Paint
Lenses: Ten 4" diameter Amber Lenses
Cable: 20 feet, gray jacket, 4 conductor
Spade connectors plug into back
Dimensions: 53" L x 13" H
Weight: Approximately 12 lbs.
|
SERIES - LWAB-10
This lite-weight reliable arrow board is ideal for both permanent and temporary installations. Permanent installation is accomplished by through-bolting the two "L" brackets aluminum legs to the vehicles roof. The 20 foot control cable plugs into the arrow board so it can be routed easily during installation. Magnetic equipped unit is used by surveyors and others who require quick set-up and portable magnets efficiently stabilize the arrow board to metal vehicle roofs. In strong winds, additional stabilization is required. A 20 foot control cable is supplied with a cigarette lighter plug for simple power hook up. In use, the unit operates at approximately 60 flashes per minute with 50% on-time. The solid state multi-function controller provides for either left arrow, right arrow, both arrows - for pass on either side, and travel mode with 4 horizontal lamps flashing together. The controller can be either mounted onto the dash or under the dash.
